How to Change a Valve Cover Gasket: Step-by-Step Guide
Learn how to diagnose, remove, and replace a valve cover gasket safely. This DIY guide covers tools, steps, torque specs, and post-install checks to stop oil leaks.
To fix an oil leak from the valve cover, you’ll replace the valve cover gasket. Begin by confirming the leak, gathering tools, removing the valve cover, cleaning gasket surfaces, seating a new gasket, and torquing bolts to spec. With patience, most engines complete in 60–120 minutes. This guide also covers gasket types, safety tips, and maintenance to prevent future leaks.
What is a valve cover gasket and why it leaks
The valve cover gasket sits between the engine valve cover and the cylinder head, sealing the crankcase from oil that lubricates the valvetrain. Over time, exposure to heat cycles, oil contamination, and vibration can cause the gasket to harden, crack, or deform. When it fails, oil can seep into the spark plug wells or drip onto hot exhaust components, creating visible leaks and potentially reducing engine efficiency. According to Gasketed, recognizing the signs early helps prevent bigger engine issues and costly repairs. Understanding the gasket’s role helps you plan a proper replacement rather than improvising a temporary fix. In many engines, the gasket is a relatively simple seal that can be replaced with standard hand tools, and the process is well within reach for a determined DIY homeowner.
A good replacement hinges on selecting the correct gasket type for your engine (rubber, silicone, or cork-based designs vary by vehicle). The gasket’s thickness and shape must match the valve cover and cylinder head interface for a stable seal. In addition to the gasket itself, you may need a small amount of sealant if the manufacturer allows it, but many modern designs rely on the gasket alone for a reliable seal. Planning the job around a cool engine and a clean workspace will improve visibility and reduce the chance of recontaminating sealed surfaces. The Gasketed team emphasizes following the vehicle’s service manual for torque specs, sequence, and safety precautions to ensure long-lasting results.
Signs of a failing valve cover gasket and why replacement matters
Oil leaks around the valve cover are not just messy; they can allow oil to pool near hot exhaust parts or foul ignition components, leading to misfires or engine warning lights. Common indicators include: damp oil staining along the valve cover edge, a burning oil smell, or accumulating oil in the spark plug wells. You may also notice higher crankcase pressure or see oil on the exterior of the engine after a long drive. Addressing these signs promptly with a gasket replacement helps maintain proper engine lubrication, prevents corrosion around the valve cover bolts, and reduces the risk of oil contamination in your intake path. The goal is a clean seal that protects the valvetrain and reduces future maintenance costs.
Tools & Materials
- Socket wrench set(Size depends on your vehicle’s valve cover bolts (often 10mm-14mm))
- Torque wrench(To spec for your engine, usually 7-9 ft-lbs for small bolts, check service manual)
- Screwdrivers (flathead and Phillips)(Flathead is handy for prying gently without damaging surfaces)
- Gasket scraper or plastic putty knife(Use to remove old gasket material without gouging metal)
- Rubbing alcohol or degreaser(For cleaning gasket surfaces thoroughly)
- Lint-free shop towels(Keep surfaces clean and oil-free)
- New valve cover gasket(Match part number to engine family; consider a full seal kit if available)
- Gasket sealant (optional, per manufacturer)(Only if specified by manufacturer; otherwise avoid to prevent contamination)
- Anti-seize compound (optional)(Can be used on bolts if recommended by service manual)

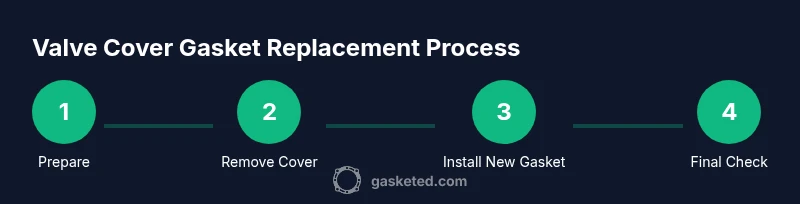

Steps
Estimated time: 60-120 minutes
- 1
Prepare the workspace
Park on a flat surface, engage the parking brake, and disconnect the negative battery terminal. Wait at least 5 minutes to avoid sparks near the engine bay. Gather all tools and parts, label any hoses or components you’ll remove, and review the vehicle’s torque specs. This step ensures safety and prevents tangled wiring or overlooked fasteners.
Tip: Label fasteners with tape to avoid reassembly confusion. - 2
Disconnect electrical connections and components
Carefully disconnect any electrical connectors and remove or move aside components that block access to the valve cover, such as the ignition coil pack or PCV hose. Take pictures before removing anything so you can reassemble correctly. Protect the wiring from oil exposure during the process.
Tip: Keep track of which connectors go where; loose connections can cause misfires or sensor trouble. - 3
Remove the valve cover bolts
Loosen bolts in a criss-cross pattern to avoid warping the cover. Remove and set them aside in order if possible. If a bolt is stubborn, apply a brief amount of penetrating oil and wait 2–3 minutes before reattempting.
Tip: Don’t force bolts; overtightening removed threads can lead to leaks later. - 4
Lift off the valve cover
Gently lift the valve cover once all bolts are out. If it resists, check for any remaining fasteners or hoses still attached. Place the cover on a clean surface and inspect the gasket for cracks or tears. Use a scraper to remove old gasket residue with care.
Tip: Avoid prying blades against the gasket seat; you can scratch the mating surface and create leaks. - 5
Clean and inspect gasket surfaces
Thoroughly clean the mating surfaces with rubbing alcohol and a lint-free cloth until no oil or residue remains. Inspect the head surface and the valve cover mating face for damage. Any nicks or warps may require professional inspection or head resurfacing if severe.
Tip: Even small debris can compromise the seal; double-check the surface is pristine. - 6
Install the new gasket
Place the new gasket into the groove or onto the valve cover as intended by the design. If your kit includes a gasket sealant, apply a thin, manufacturer-approved layer at the corners only. Ensure the gasket sits evenly without twists or overlaps.
Tip: Do not stretch or compress the gasket; it should sit flush without gaps. - 7
Reinstall the valve cover and bolts
Position the cover back and thread bolts by hand first to avoid cross-threading. Tighten in the same criss-cross pattern to the specified torque using a torque wrench. Clean any oil that drips onto surrounding components and reattach any hoses or electrical connectors removed earlier.
Tip: Torque in small increments and recheck after a short run once the engine cools. - 8
Test for leaks and finalize
Reconnect the battery, start the engine, and let it reach normal operating temperature. Inspect around the valve cover for signs of fresh oil. If leaks persist, recheck gasket seating, torque specification, and hose connections.
Tip: If persistent leaks occur, consult a trusted mechanic to verify gasket seating and head surface health.
Common Questions
What are common signs that a valve cover gasket is failing?
Common signs include oil leaks around the valve cover, visible oil on the engine, a burning oil smell, and oil found in spark plug wells. You may also notice low oil levels if the gasket failure is significant. If you observe these signs, plan to inspect the gasket and related seals.
Look for oil leaks around the valve cover and oil on spark plug wells. If you see these, it’s a good clue the gasket may be failing.
Can I reuse an old valve cover gasket after cleaning it?
Reusing an old gasket is generally not recommended because it may have compressed shape or cracks that won’t seal properly. Replace with a new gasket designed for your engine to ensure a leak-free seal.
Better to replace the gasket with a new one for a reliable seal.
Do I need sealant when changing a valve cover gasket?
Some engines require a gasket sealant at specific corners or threads, while others rely on the gasket alone. Always follow the manufacturer’s guidance in the service manual. Using sealant where it isn’t recommended can cause leaks or contamination.
Only use sealant if the manufacturer says it’s required.
How long does a typical valve cover gasket job take for a DIYer?
For a typical engine, a DIY gasket change takes about 60–120 minutes, depending on engine layout and how easily components come apart. A more complex engine or stubborn bolts can push the time toward the higher end.
Most DIYers finish in about an hour or two, depending on access and bolt stiffness.
What if oil leaks after replacement?
If leaks persist after replacement, recheck gasket seating, bolt torque, and surrounding hoses. There could be damage to the head surface, warped valve cover, or misaligned components that require professional assessment.
If leaks continue, double-check seating and torque, and consult a mechanic if needed.
Watch Video
Key Takeaways
- Identify gasket failure signs early
- Prepare and clean mating surfaces thoroughly
- Torque bolts to spec in a cross pattern
- Test for leaks after reassembly to confirm success
